Shuttle Library

509
2018-06-06

First, introduction of shuttle type stereoscopic warehouse.
The shuttle warehouse system is evolved from the through-type shelf system, but the forklift truck does not need to drive into the inside of the shelf. It overcomes the shortcomings of the slow access speed of the through-type shelf and the poor stability of the shelf system, and realizes the remote control automation of the access. The outer tray goods are transported back by forklift truck, and the inner tray goods are stored and stored by shuttle-board trolley. In other words, when the goods are in stock, the forklift truck puts the tray goods into the front part of a certain layer of guideway in the shelf area. The tray goods are transported to the depth of depth by the shuttle-board trolley which is in the layer by wireless remote control. The pallet cargo in the bottom of the rack is moved to the port of the guide rail and the pallet is removed by the fork truck. This kind of shelf system is characterized by high storage space utilization, stable and reliable system, can achieve semi-automation, suitable for the storage of large quantities of small varieties of goods, such as food, beverage, refrigeration and other industries, shuttle boards can choose six-dimensional self-developed shuttle boards or imported shuttle boards. The connection between different areas of the shuttle board rack can also be carried out by the sub-car and the mother car, and the peripheral can also be carried out by the elevator or the stacker, thus building a higher degree of automation of high-density storage system.

Usage description of shuttle type stereoscopic warehouse

Second, the characteristics of shuttle type stereoscopic warehouse
The 1. is composed of three parts: Shuttle rack, battery driven shuttle car and forklift truck.
2.货架的结构更合理、稳定,抗地震安全性能大大高于驶入式货架;
3.跟驶入式货架相比,穿梭车货架可设计的深度更大且密集;
4.叉车类型的选择多;
5.实现驶入式货架无需驶入,进出货效率高,大大节省空间及人力成本。

第三、穿梭式立体仓库产品优势
1. 自由选择货物批量进出次序
2. 可选自动功能多,操作简便
3. 单个遥控器可分别控制多台穿梭车
4. 实时双向遥控,可监控多种穿梭车状态—如电机温度、电池电量、报警内容等
5. 托盘间距可设定、托盘深度可变、可自动统计托盘并理货
6. 结构设计更精准,确保高层存取流畅,实现托盘货物******密集度存放,显著减少库房建设费用
7. 载重范围广,安全可靠
8. 可靠的安全防护设计:防地震、防碰撞、防物件损伤
9. 智能预警模块设计,自动实现常见故障自我排除和危险作环境预警,使仓储系统工作稳定性极佳

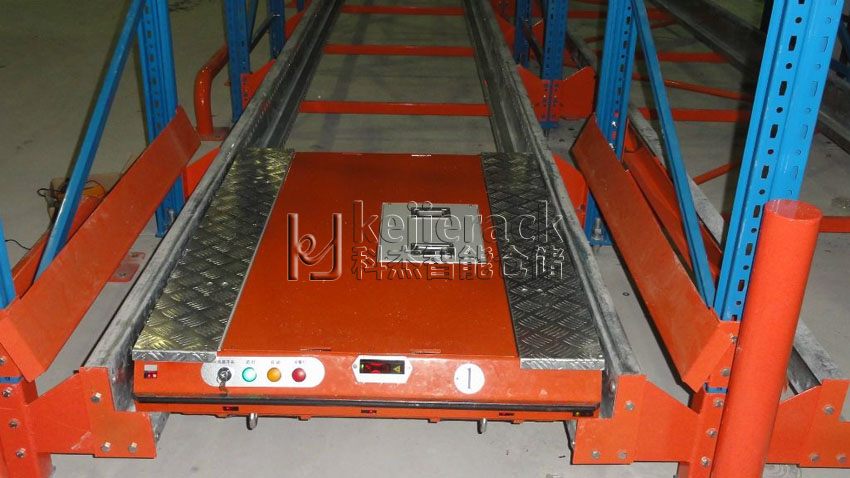

穿梭车立库

第四、穿梭式立体仓库设备好处
1.多量少样:食品、饮品、化工、烟草等单品种批量大,品项相对单一的行业
2.冷库作业:减少低温作业时间,提高工作效率和作业安全性
3.期限管理:对物品批次有严格要求,需要先进先出作业管理的仓库
4.增加库容:存储空间有限,需要******化利用空间的仓库

穿梭式立体仓库示意图

第五、穿梭式立体仓库安装现场
1.科杰安装人员在客户工厂安装动力电池立体仓库,物流输送线现场,安全操作并且安装人员进入现场前经过严格训练
2.建立安全管理与安全组织
3.制定施工安全措施
4.安排安全管理人员进行安全管理与安全监护。
